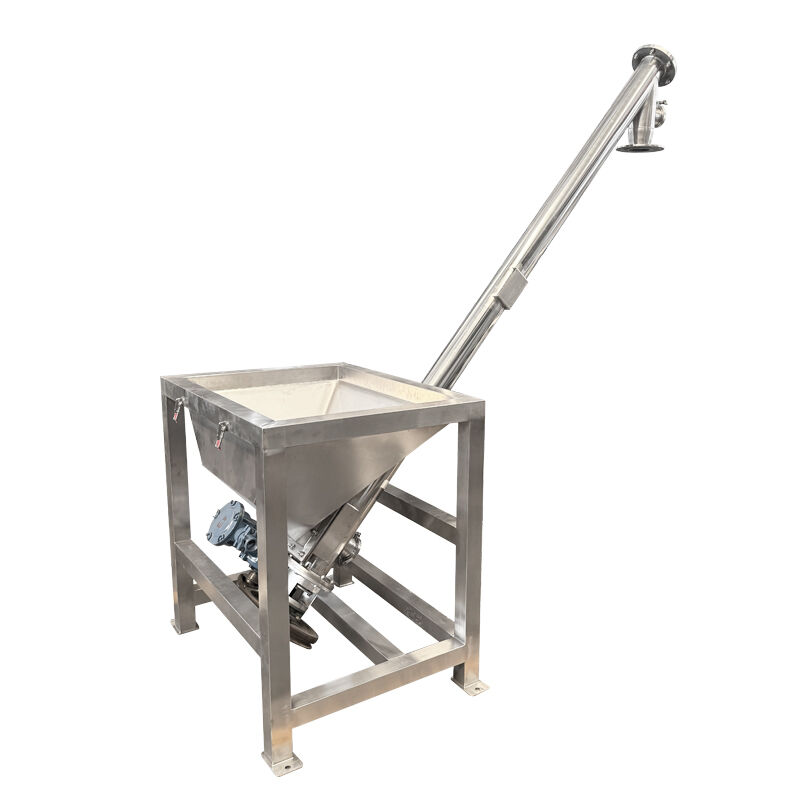

Screw Conveyor

Product description
The screw conveyor is a compact and fully enclosed continuous conveying equipment with a wide range of applications in the food, chemical, building materials and environmental protection industries. It mainly addresses the challenges of transporting powdery, granular and small-sized materials. With excellent sealing performance, it effectively prevents dust from spilling out. For viscous materials such as sludge, a unique shaftless design ensures perfect prevention of entanglement and blockage. This equipment has a small footprint and is flexible to operate, making it an ideal choice for achieving clean production and automated flow in workshops.

Working principle
A screw conveyor is a type of conveying equipment that uses rotating spiral blades to generate axial thrust and continuously moves materials within a closed casing. The core principle is as follows: When the screw shaft rotates, the materials, under the combined effect of their own gravity and the friction with the casing walls, cannot rotate along with the blades but instead, like a nut moving along a screw, are forcibly pushed along the axial direction by the blades. This mechanism enables it to flexibly achieve horizontal, inclined or vertical conveyance. It is suitable for powdery and granular materials and can also handle viscous or easily tangled media through an axleless design.

Product characteristics

1. Simple structure: The overall structure is not complicated, there are few components, and maintenance and repair are also relatively convenient.
2. Environmental protection and cleaning: The materials are conveyed within a sealed machine chamber, effectively preventing dust from escaping and reducing pollution to the environment.
3. Flexible layout: The cross-sectional size of the equipment is small, occupying a small area, making it easy to be installed in narrow spaces or at high altitudes. At the same time, it can be loaded or unloaded at multiple points along the conveying line.
4. Flexible layout: It can be designed in various forms such as horizontal, inclined or vertical according to the requirements.

Product parameter













 Production line diagram

1.The screw conveyor transport the mixed material from the ribbon mixer to a horizontal screw conveyor
2.The horizontal screw conveyor with 3 outlets, each outlet equip with a butterfly valve, when you need filling a bulk bag, just open that butterfly valve
3.The platform cam add weighing sensor if you need

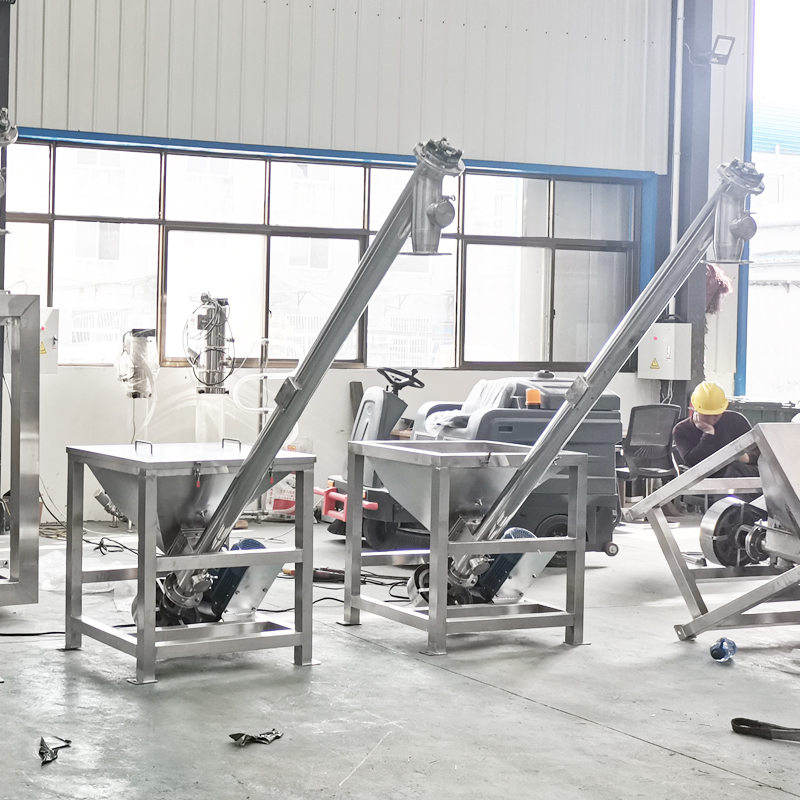

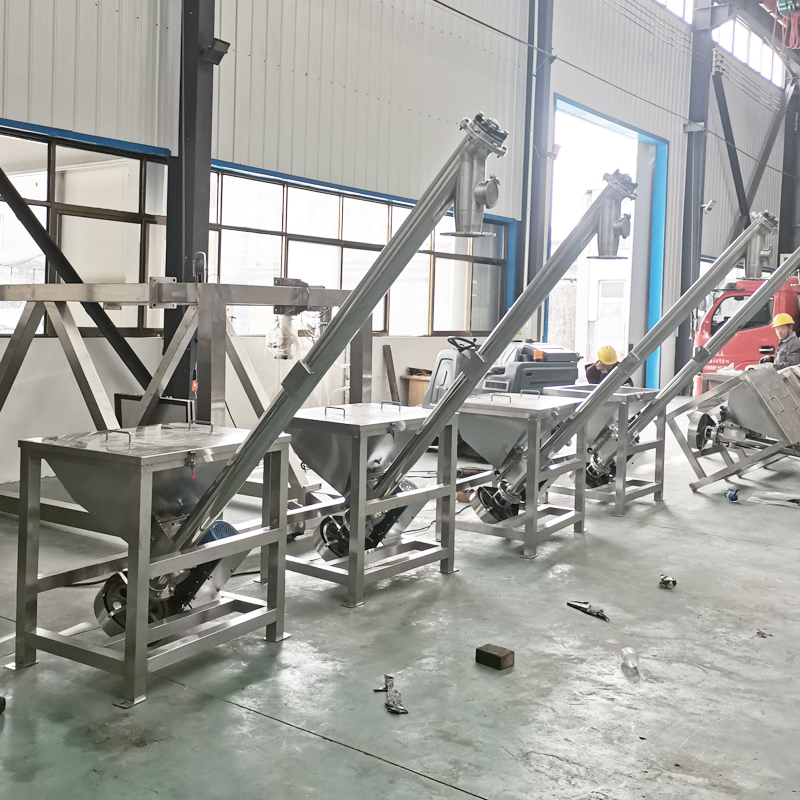

Product display


Product details



Product application
