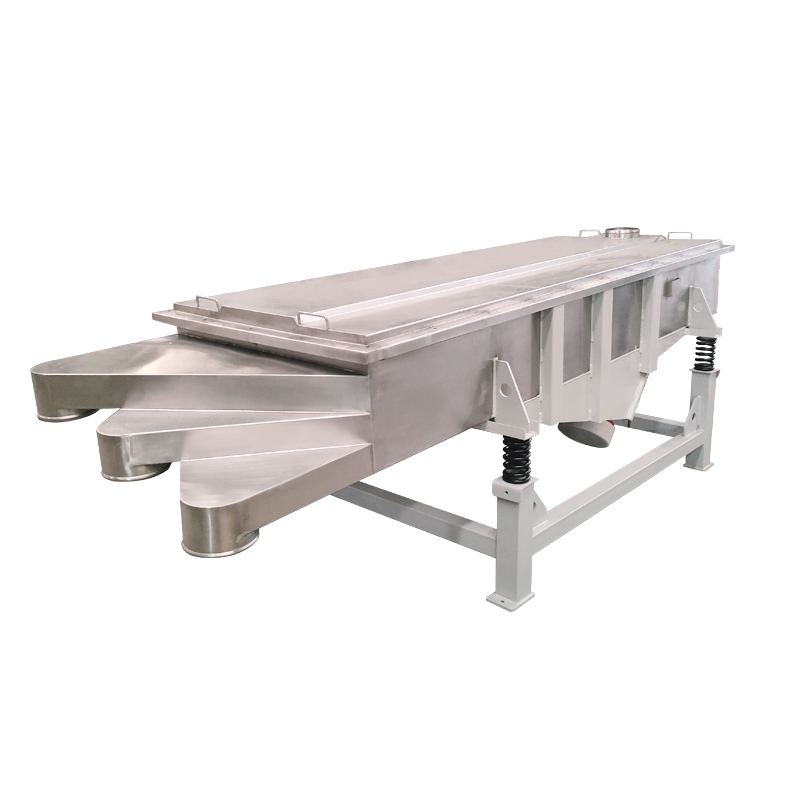

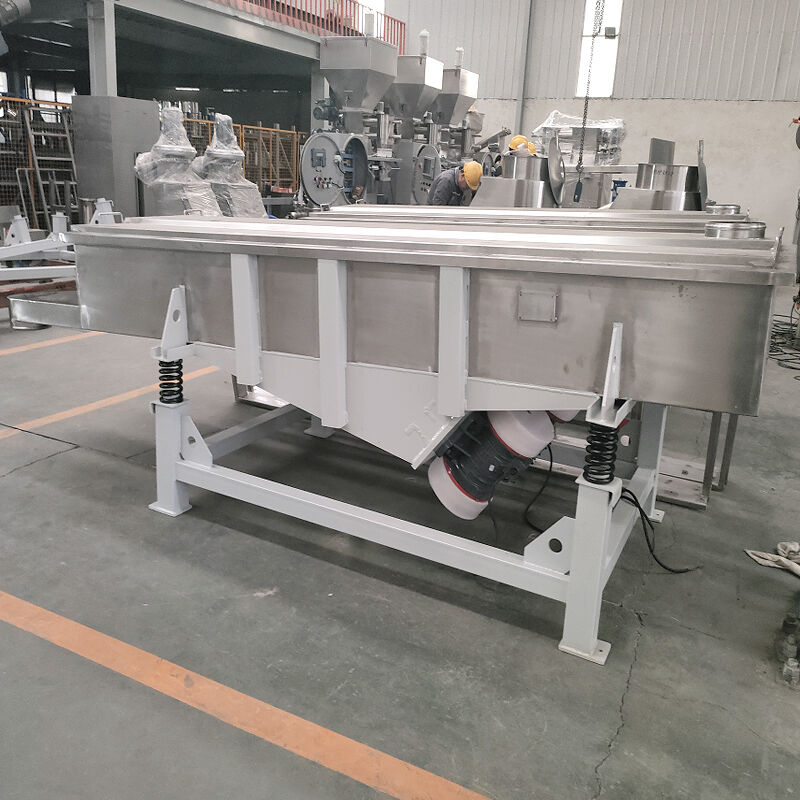

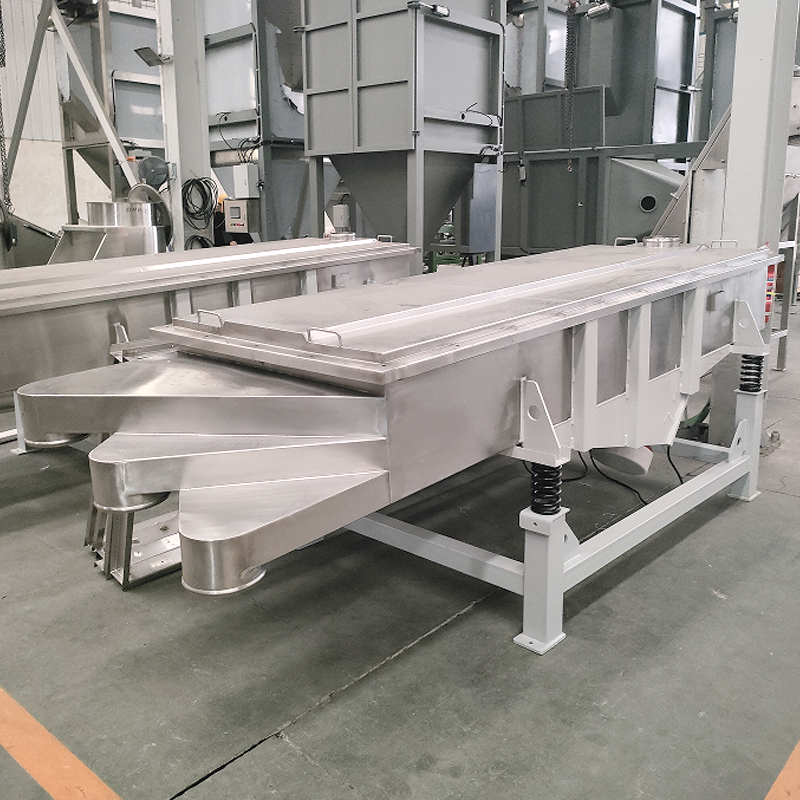

Linear Vibrating Screen

Product description

The straight-line sieve is an efficient and widely used industrial screening equipment. Its core feature is that during the operation of the sieve machine, the sieve box or sieve screen moves in a reciprocating linear motion along a fixed direction, thereby conducting screening of the materials. This equipment has a sturdy structure, simple design, stable and reliable operation, and is easy to maintain. With its high processing efficiency and excellent screening accuracy, the straight-line sieve is a key equipment for material classification, impurity removal and screening in many fields such as food, building materials, chemical industry and grain processing.


Working principle
The core working principle of the linear screen is to utilize the directional excitation force generated by the dual vibration motors to drive the screen box to perform uniform reciprocating linear motion. During this process, the materials on the screen surface are slightly lifted periodically by the inertial force and continuously advance along a parabolic trajectory; at the same time, under the combined effect of gravity and continuous throwing, the materials continuously roll, stratify, and the fine particles come into contact with the screen mesh and pass through it for separation, while the coarse particles float on the upper layer and are transported forward. This ultimately achieves efficient screening and classification.

Product features

1. High efficiency and high output: The materials move in a straight line, the feeding speed is fast, the screening is rapid, the processing capacity is large, and it is suitable for batch screening of medium and coarse particles.
2. Simple and reliable structure: It is driven by two vibration motors, the overall structure is simple, the operation is stable, and maintenance is convenient.
3. Controllable screening accuracy: By adjusting the excitation parameters, the movement of the materials can be effectively controlled, achieving accurate layering and screening.
4. Sealed and environmentally friendly: It is easy to achieve a fully enclosed design, preventing dust from spilling out, and meeting environmental protection requirements.
5. Strong versatility: Widely applicable to dry and wet material classification operations in industries such as mining, building materials, chemical industry, and grain.


Product parameter

Production line diagram

1.Forklift filling the material into the storage hopper
2.A belt conveyor under the hopper, to transport the material to a linear vibrating screen
3.And another belt conveyor can transport the sieved material to other place
4.The belt conveyor can with dust cover and can add wheels
