Double Cone Mixer
Product description
The double-cone mixer is a powder mixing equipment widely used in the pharmaceutical, chemical, food and other industries. Its core structure is composed of two conical heads connected with a central cylinder, and the whole is in a double-cone shape. This equipment has the characteristics of high mixing efficiency, good mixing uniformity, simple operation, thorough discharging and low residual content. It is suitable for the mixing of dry powder and granular materials, and performs exceptionally well in production scenarios with high requirements for mixing accuracy.
Working principle
The working principle of the double-cone mixer is to utilize the rotation of the double-conical cylinder around the horizontal axis to enable efficient mixing of the materials in an asymmetric space. During operation, the cylinder rotates at a speed of 5 to 20 revolutions per minute. The materials inside the cylinder are carried to a higher position by the cylinder and then slide down to a lower position under the influence of gravity.
Meanwhile, due to the asymmetry of the double-cone structure, the materials are constantly divided, turned over, and their movement trajectories change. Different component particles break their original distribution through continuous displacement, collision, and interpenetration. Through forced convection and diffusion movements, overall uniform mixing is gradually achieved. Its design reduces mixing dead zones and, with a reasonable loading volume (50%-70% of the volume), can efficiently complete the mixing of dry powder or granular materials.
Product characteristics
1. Excellent mixing effect: With its unique double-cone structure, there is less material residue during the mixing process, and the mixing uniformity is high, which can meet the requirements of scenarios with high precision for mixing.
2. Wide application range: It is mainly used for mixing dry powder and granular materials, especially suitable for materials with good fluidity.
3. Convenient operation: The equipment operates stably, the operation process is simple, and the mixing effect can be adjusted by controlling parameters such as rotation time.
4. Good cleanliness: The inner wall is smooth, the discharging is thorough, it is easy to clean, can reduce cross-contamination of materials, and meets the hygiene requirements of industries such as pharmaceuticals and food.
Application
1. New energy: The cathode material of lithium batteries (lithium iron phosphate) is mixed with conductive agents to ensure battery performance.
2. Food: Infant formula is a blend of vitamins and milk powder, which causes low damage and leaves little residue, meeting food hygiene standards.
3. Chemical engineering: When the catalyst is mixed with the binder, a spray device can be installed to achieve solid-liquid integration.
4. Ceramics: Mix barium titanate powder with MLCC to ensure consistency in dielectric constant.
5. Agricultural: Wettable powder is mixed in batches, sealed to prevent leakage, and the unloading efficiency is high.
6. Research and Development: Small-batch new material formula research and development in the laboratory, supporting flexible parameter adjustment.
Product parameter
| Model |
W-300 |
W-500 |
W-1000 |
W-1500 |
W-2500 |
W-4000 |
W-6000 |
W-8000 |
|
Production capacity
(kg/time)
|
150 |
250 |
500 |
750 |
1250 |
2000 |
3000 |
4000 |
|
Full volume
(cubic meter)
|
0.3 |
0.5 |
1 |
1.5 |
2.5 |
4 |
6 |
8 |
|
Mixing time
(min)
|
4-8 |
4-8 |
6-12 |
6-12 |
6-12 |
6-15 |
6-15 |
6-15 |
|
Motor power
(KW)
|
1.1 |
2.2 |
3 |
4 |
5.5 |
7.5 |
11 |
15 |
| Cylinder speed (RPM) |
15 |
15 |
12 |
12 |
12 |
10 |
10 |
10 |
|
Dimension
(L*W*H)
|
1680*650
*1600
|
2080*750
*1900
|
2150*850
*2100
|
2300*1600
*3100
|
2500*1000
*2450
|
2980*1580
*2800
|
3500*1800
*3000
|
3980*2000
*3200
|
| Weight (kg) |
310 |
550 |
800 |
950 |
1650 |
1880 |
2350 |
2680 |
Detail display

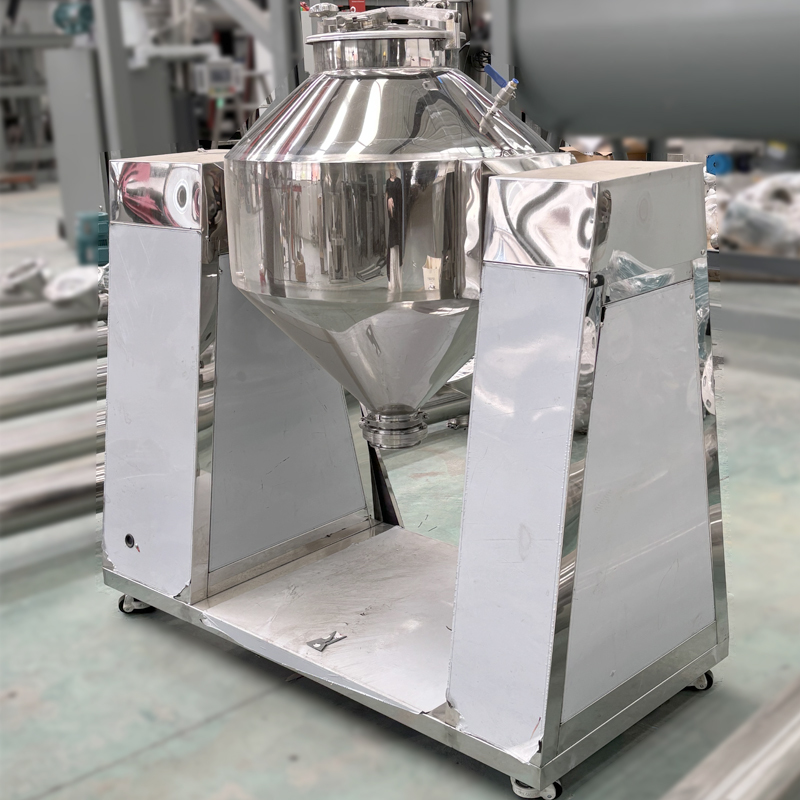

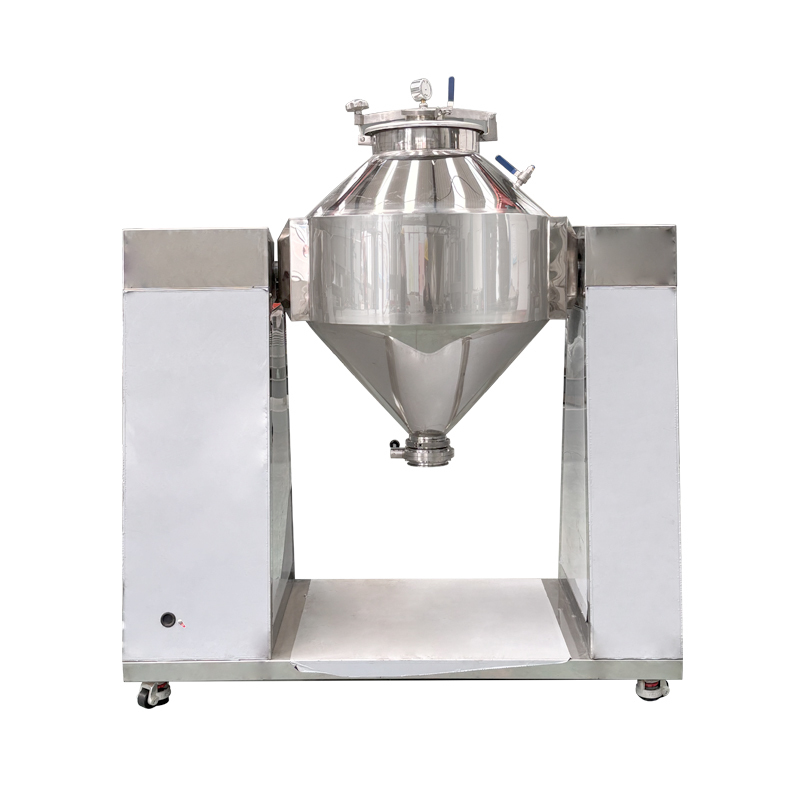

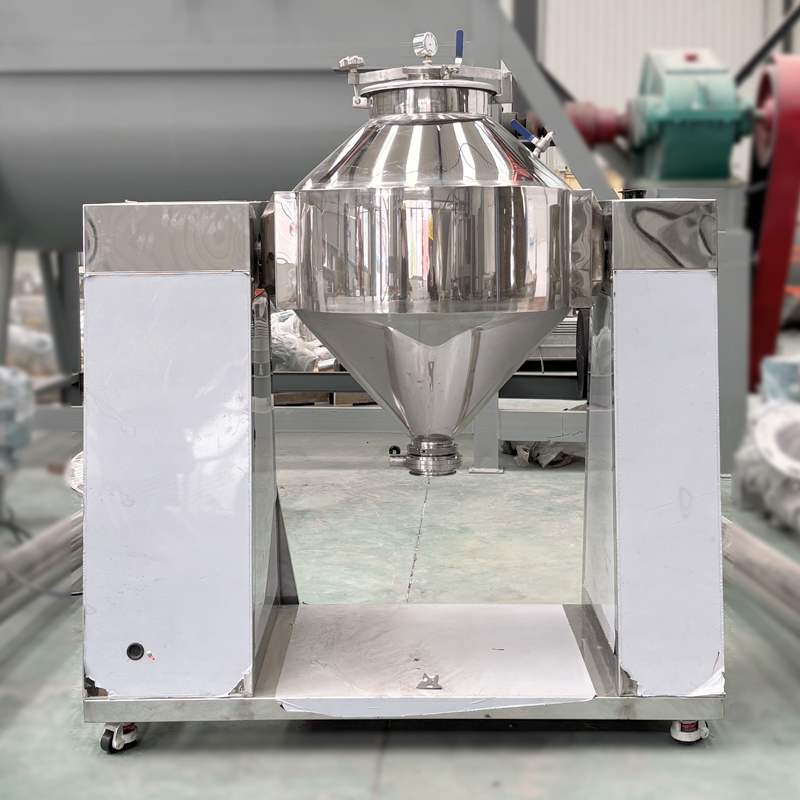

Product display
