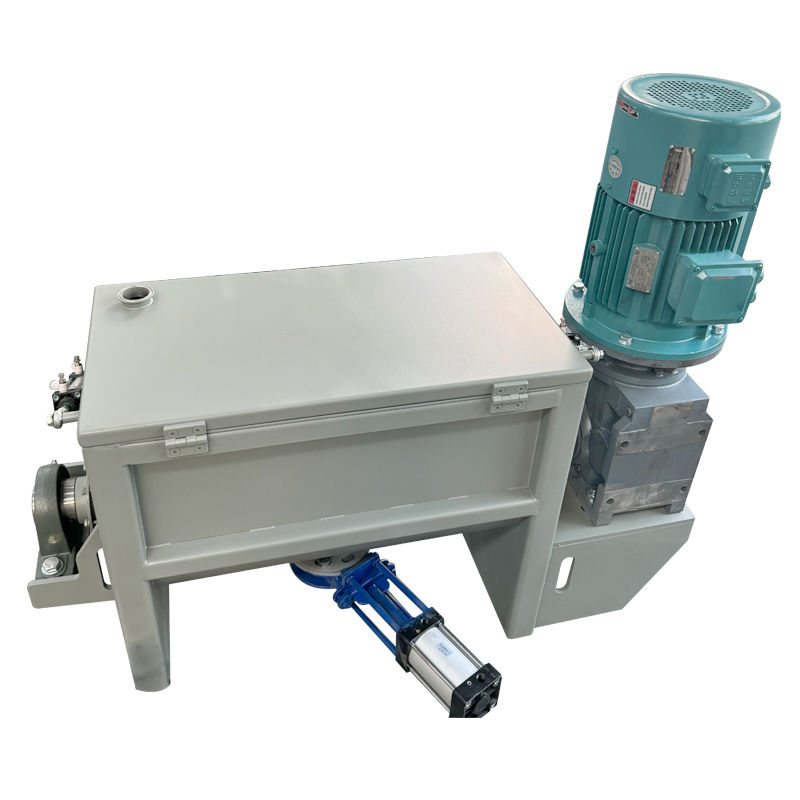

Ribbon Blender

Product description

The helical ribbon mixer is an efficient equipment for mixing powders with powders or powders with liquids. Its core structure includes double-layer helical ribbons (the inner and outer helical ribbons rotate in opposite directions) inside the container. It is suitable for handling large volumes, high-viscosity or materials with significant differences in specific gravity, and can achieve uniform mixing of materials in a short time. It is widely used in industries such as chemical engineering, pharmaceuticals, food, and building materials. This equipment features high mixing efficiency, no dead corners, and convenient unloading. It can also be equipped with heating, cooling or liquid spraying devices as required to meet different process requirements.

Working principle

When the equipment is in operation, the inner and outer helical belts rotate at different speeds. The outer helical belt pushes the material from both ends of the mixing container towards the central area, while the inner helical belt transports the material from the central area to both ends. This creates a forced convective circulation of the material within the container. This bidirectional pushing motion pattern enables the material to be rapidly and uniformly mixed through continuous shearing, diffusion, and tumbling. Even for materials with significant density differences, high viscosity, or large capacity, it can achieve the desired mixing effect in a relatively short time, and can also reduce mixing dead zones, ensuring the consistency of material mixing.

Product features

- High mixing efficiency, capable of quickly processing large volumes of materials;
- Excellent mixing effect, without dead corners, suitable for materials with significant density differences and high viscosity;
- Wide applicability, capable of mixing powders with powders, powders with liquids, suitable for multiple industries;
- Simple operation and maintenance, thorough discharging, easy cleaning;
- Strong scalability, can be equipped with heating and cooling devices to meet special processes.

Model	Volume(L)	Motor power (kw)	Spindle speed(r/min)	Primary mixing (kg) M ³	L*W*H(mm)	Weight (kg)
WLDH-0.3	300	3	41	240	2300*680*1060	750
WLDH-0.5	500	5.5	41	400	2900*780*1240	1000
WLDH-1	1000	11	33	800	3200*1000*1400	1800
WLDH-2	2000	15	33	1600	3860*1200*1650	2200
WLDH-3	3000	18.5	33	2400	4320*1300*1900	3200
WLDH-4	4000	22	28	3200	4600*1400*2000	4000
WLDH-5	5000	37	28	4000	4850*1500*2020	4650
WLDH-6	6000	37	22	4800	5400*1560*2200	6280
WLDH-8	8000	45	22	6400	5100*1720*2420	8500
WLDH-10	10000	55	19	8000	5610*1750*2360	9300
WLDH-15	15000	90	17	12000	5820*2000*3160	11000
WLDH-20	20000	110	11	16000	6060*2630*3160	13500

Production Line Diagram

1. Put your materials into the weighing silo

2. Enter the required weight of each material in the control system.

3. The ingredient you want will enter the weighing hopper.

4. The weighing hopper is connected with a vacuum conveyor.

5. The vacuum conveyor will suck the material into the mixer

6. After mixing, the material will feed into the packing machine by the vacuum conveyor

7. The packing machine will fill 2kg of material into your bags and seal the bags

Product details

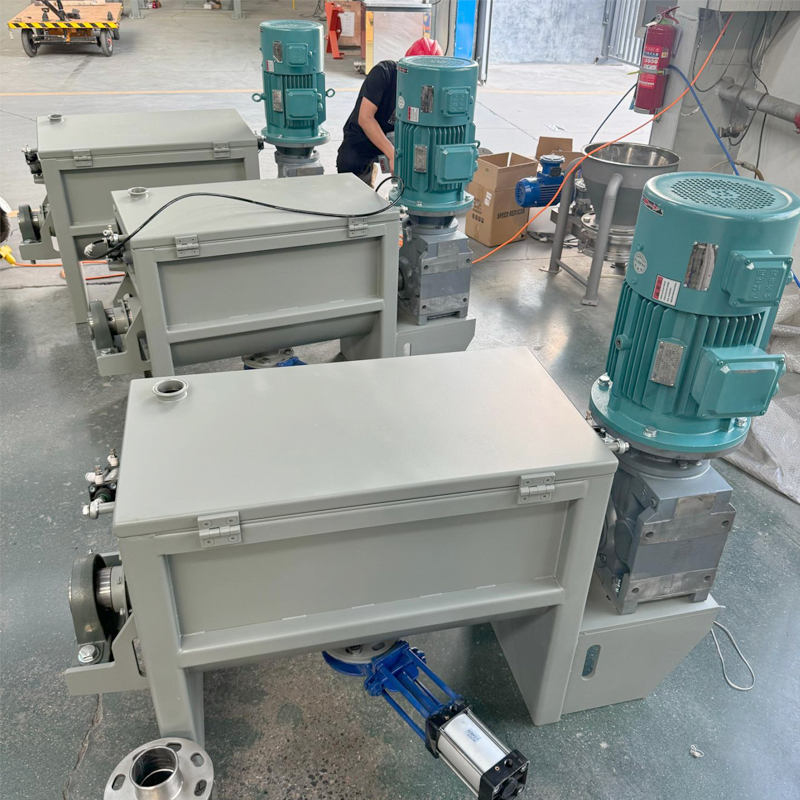

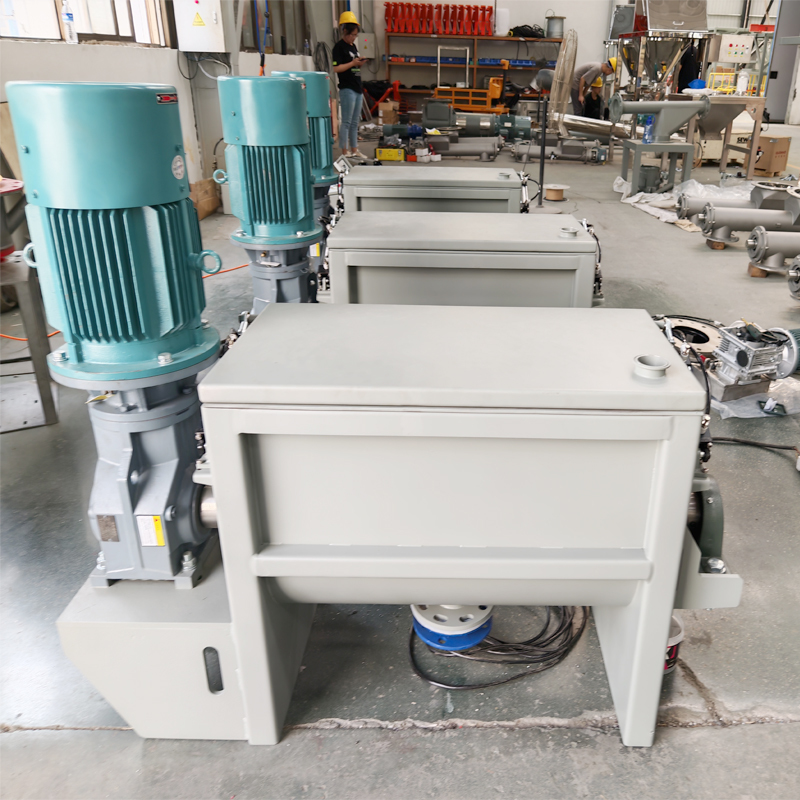

Product shows

Product application

Mixing with a screw ribbon mixer not only takes a short time but also has good mixing results, and it is a highly practical mixing device. is usually used for mixing powders with powders or powders with liquids, so it is widely used in the pharmaceutical, food, pesticide, dye, chemical and plastic industries.
