Plow mixer
Product Description
The ploughshare mixer is a high-efficiency powder mixing equipment with a horizontal cylindrical structure. It is equipped with ploughshare-shaped stirring components inside and flying knives on both sides of the cylinder. Under the strong shearing, convection and diffusion effects, it can quickly and evenly mix materials of different particle sizes and densities. It is widely used in powder material mixing operations in industries such as chemical engineering, food, medicine and building materials.
Working Principle
When the ploughshare mixer is in operation, the ploughshares rotate at high speed, throwing the materials up and creating vortices, which promotes convective movement of the materials. At the same time, the high-speed rotation of the flying knives on both sides of the cylinder shears and refines the material particles, enhancing the diffusion effect among the materials. Under the combined action of the ploughshares and the flying knives, materials of different particle sizes and densities are uniformly mixed through intense shearing, convection and diffusion.
Product features
High mixing efficiency: The high-speed rotation of the plow blades and flying knives enables the materials to undergo intense shearing, convection and diffusion in a short time, achieving a fast mixing speed and being suitable for large-scale production.
High uniformity of mixing: It can effectively handle materials of different particle sizes and densities. Even if the material properties vary greatly, a high degree of mixing uniformity can be achieved, meeting the high mixing precision requirements of industries such as chemical engineering and pharmaceuticals.
Strong adaptability: It can be used for the mixing of powder and granular materials, with a wide range of applications, and is commonly used in fields such as chemical engineering, food, and building materials.
Rational structural design: The combination of the horizontal cylinder with the plow blades and flying knives facilitates the feeding and discharging of materials, and the equipment operates stably with relatively convenient maintenance.
Product Parameters
| Model |
LDH-300 |
LDH-1000 |
LDH-2000 |
LDH-3000 |
LDH-4000 |
| Working volume(L) |
300 |
1000 |
150 |
200 |
4000 |
| Stirring speed(rpm) |
60 |
60 |
60 |
60 |
60 |
| Stirring motor(kw) |
5.5 |
11 |
22 |
30 |
37 |
| External dimensions(mm) |
1200*500*950 |
2300*980*1500 |
2900*1030*1750 |
3300*1150*1950 |
4000*1250*2200 |
| Weight(kg) |
520 |
1350 |
1910 |
2450 |
3020 |
Production line schematic diagram
Configuration A: Forklift feeding → Manual feeding to the mixer → Mixing → Manual packaging (weighing on a scale)
Configuration B: Crane feeding → Manual feeding to the feeding station with dust removal → mixing → Uniform discharge through the planetary discharge valve → vibrating screen
Details Lmages

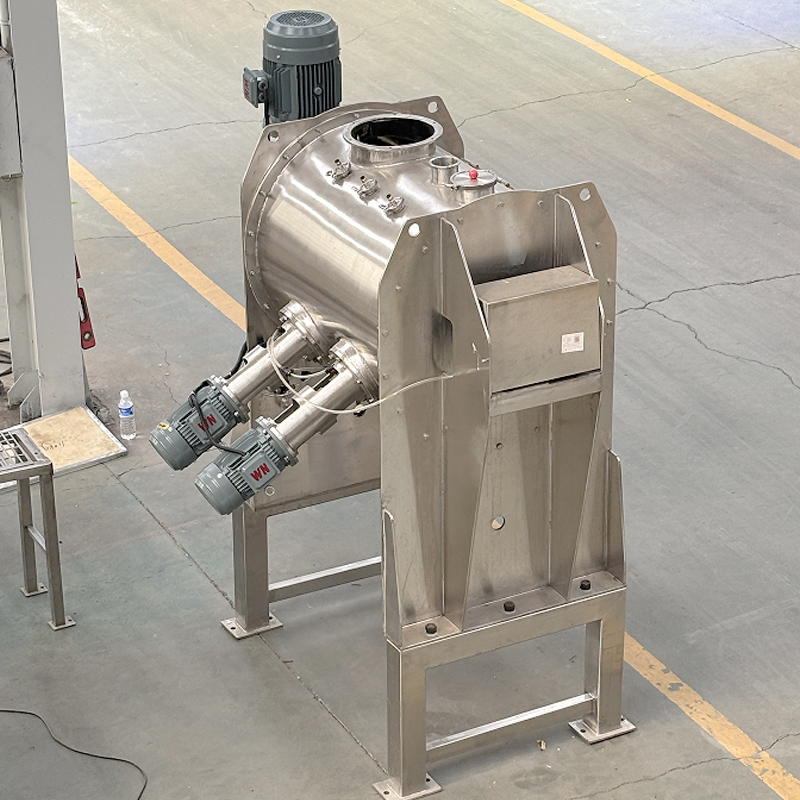

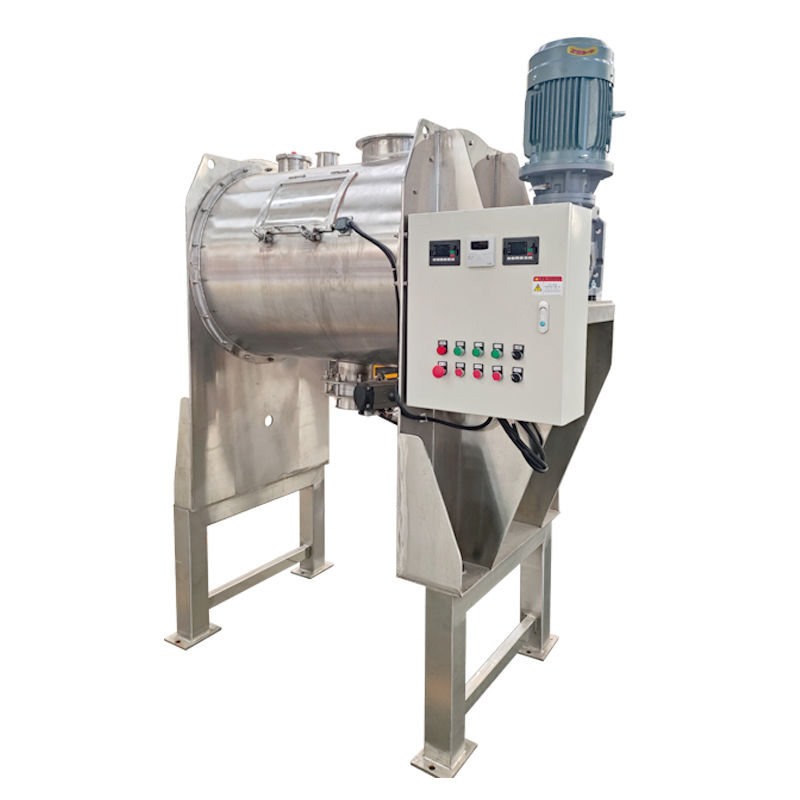

Product Shows
Packing & Delivery
Why Choose Us
About us
Company Profile
We have been specializing in the production of Screening and conveying equipment for 13 years. China's vibrating screen industry top three. And we have done matching and OEM for many large companies. Including the world's top vibrating screen manufacturer, Sweco, USA, we have OEM for his China region. And our products are often exported to Australia, Thailand, Indonesia, New Zealand and other countries.
