Ultrasonic Vibrating Screen for Stainless Steel Powder 1-5 Layers

Product Description:

The ultrasonic rotary vibrating screen is a high-precision screening equipment that integrates ultrasonic technology. It is specifically designed to address the clogging problem of nets during the screening process of materials. It can effectively handle screening challenges caused by factors such as viscosity and static electricity, significantly improving screening efficiency and accuracy. It is particularly suitable for the classification screening of fine powders and micro-particle materials, and can also reduce material loss. It is an efficient solution in the field of fine screening.

Working principle

The motor uses the eccentric block to make the sieve body perform multi-dimensional compound vibration, causing the materials to move on the sieve surface. Small particles can be sorted and classified. Meanwhile, the ultrasonic generator, through the transducer, converts electrical energy into high-frequency mechanical vibration that acts on the sieve mesh. The two vibrations work together. The former provides the sorting power, while the latter removes adhered particles and prevents the screen from getting clogged, achieving efficient and precise screening.

Product Features

1. The screening accuracy is high. It can handle ultrafine powders with a particle size of over 2000 mesh, and the grading effect is far superior to that of ordinary rotary vibrating screens.
2. It effectively solves the problem of clogged screens. The high-frequency ultrasonic vibration can break the electrostatic adsorption and adhesive agglomeration of particles, reducing the frequency of screen cleaning.
3. The screening efficiency is high. The combined action of the two vibrations accelerates the screening speed of the materials, especially suitable for materials that are prone to agglomeration and have high viscosity.
4. The material loss is low. The ultrasonic vibration is gentle, reducing excessive friction and crushing of the materials on the screen surface.

Product parameters

Production Line Diagram

Details presentation

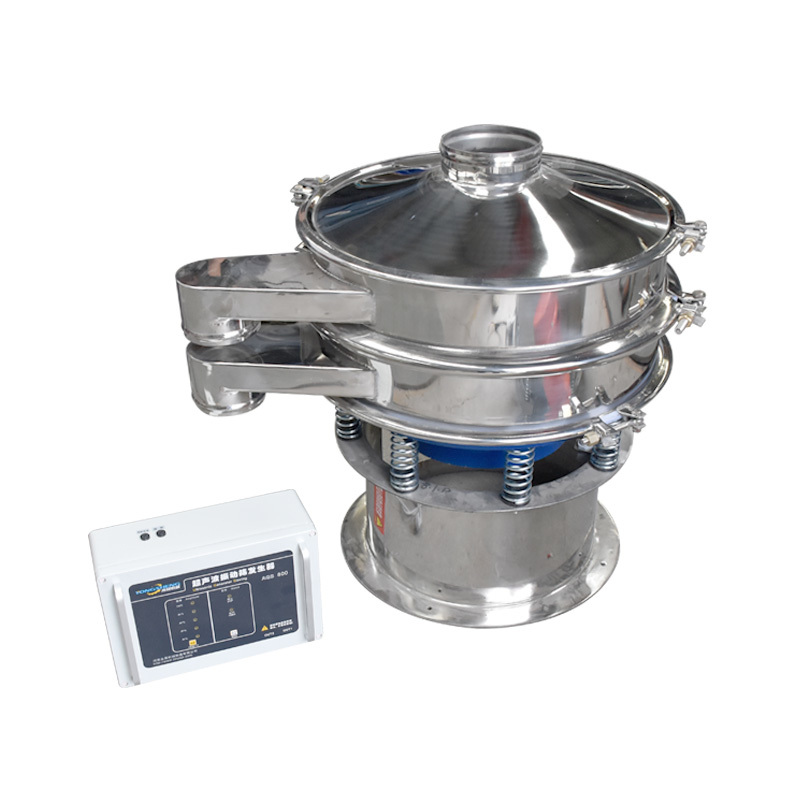

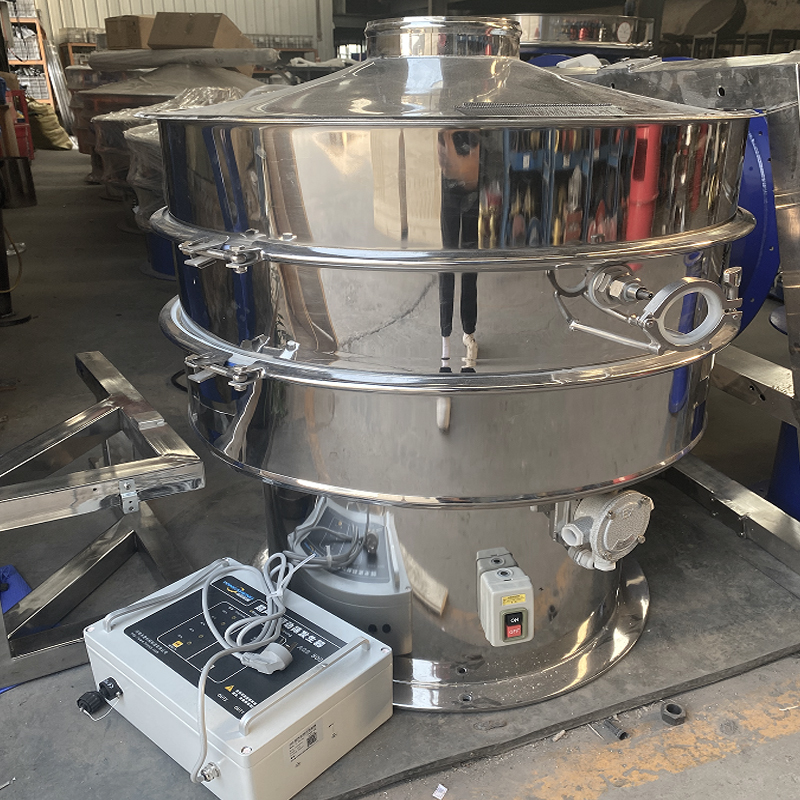

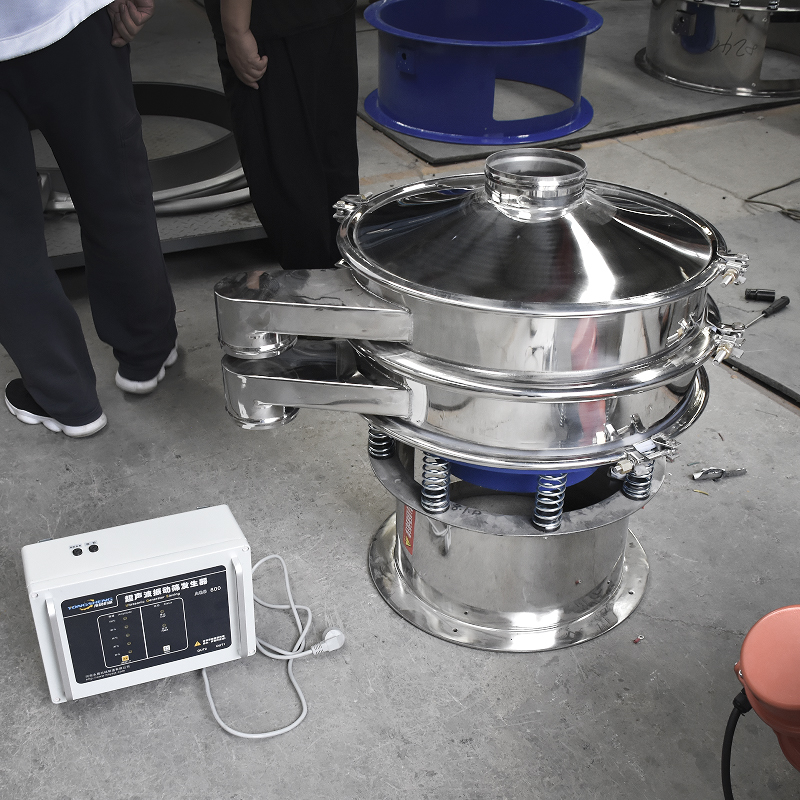

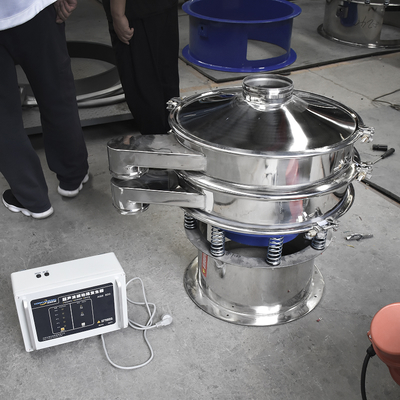

Product display

Applications:

The EXZS ultrasonic vibrating screen is a rotary vibrating screen with an ultrasonic system that allows for accurate and efficient sieving of materials. This makes it ideal for a wide range of applications and scenarios, including:

• Chemical industry: The ultrasonic vibrating sieve is perfect for screening and separating chemical powders and liquids, ensuring a high level of accuracy and efficiency.
• Pharmaceutical industry: With its ability to accurately and efficiently screen pharmaceutical powders and liquids, the ultrasonic sieving machine is an essential tool for any pharmaceutical manufacturer.
• Food industry: The EXZS ultrasonic vibrating screen is designed to efficiently and accurately screen food products, ensuring a high level of hygiene and safety.
• Mining industry: With its robust construction and high capacity, the ultrasonic vibrating sieve is ideal for screening and separating a wide range of mining materials, from coal to ores and minerals.

Packing and Shipping:

Product Packaging:

• The ultrasonic vibrating screen will be packed in a sturdy cardboard box.
• The box will be sealed with tape to prevent any damage during transit.
• The product will be accompanied by an instruction manual.

Shipping:

• The product will be shipped within 2 business days of receiving the order.
• We offer free shipping for this product within the United States.
• The estimated delivery time is 5-7 business days.
• We also offer international shipping for an additional fee.

Place your order today and take advantage of our competitive pricing and flexible payment terms, including T/T, Western Union, MoneyGram, and L/C. With a minimum order quantity of just 1 set and a supply ability of 5000 sets per year, you can trust EVERSUN to deliver the ultrasonic vibrating screen you need, when you need it. Our standard export wooden box ensures safe and secure delivery, with a delivery time of within 7-15 work days.
